750kVA Transformer Station Pricing and Important Factors to Know

Below is detailed information about the 750kVA transformer station pricing without including competitor companies or specific contractors.

Technical Specifications of the 750kVA Transformer Station

The 750kVA transformer station is an essential device in the electrical system, providing stable power sources for factories, industrial zones, and large commercial buildings. It usually operates with voltage levels of 10KV, 22KV, 35KV on the primary side and 0.4KV on the secondary side. A three-phase oil-immersed transformer station is typically used to ensure durability and stable performance.

In the construction and energy sector, the 750kVA transformer station plays a vital role in ensuring stable and safe power supply. When considering design and installation, specific technical specifications are crucial. This not only helps optimize performance but also impacts costs and pricing of the 750kVA transformer station.

General Technical Specifications

• Power: 750 kVA
• Type of machine: 3-phase, can be oil-immersed or dry type
• Primary voltage: Common levels such as 22kV or 35kV
• Secondary voltage: 0.4kV
• Frequency: Operates at a frequency of 50Hz
• Winding connection: Common connections like Dyn11 or Yyn0, especially for oil-immersed transformers

Specific Technical Specifications

• No-load Loss (Po): Varies depending on the manufacturer, with levels of 1300W for Thibidi and 845W for dry type
• No-load Current (Io): Normally ranges from 1% to 2%
• Short-circuit Loss (Pk): 11000W for Thibidi and 6540W for oil-immersed transformers
• Short-circuit Voltage (Uk): Varies from 4% to 6%

Dimensions and Weight Specifications

Dimensions and weight depend on specific design and manufacturer. For example, with Thibidi transformers, dimensions L: 1710mm, W: 1050mm, H: 1665mm and weight is 2304kg.

Applications and Types of Transformer Stations

A 750kVA transformer station is widely used in industrial parks, residential areas, or projects with large electricity needs. Its main application is to convert voltage from medium voltage to low voltage, in line with specific technical requirements. Transformer station types can be outdoor, pad-mounted, suspended, or indoor, depending on environment and space requirements.

Evaluating the above technical characteristics will help individuals and organizations make reasonable decisions when seeking 750kVA transformer station pricing, ensuring selection of equipment suited to their needs and practical conditions.

Advantages and Applications of the 750kVA Transformer Station

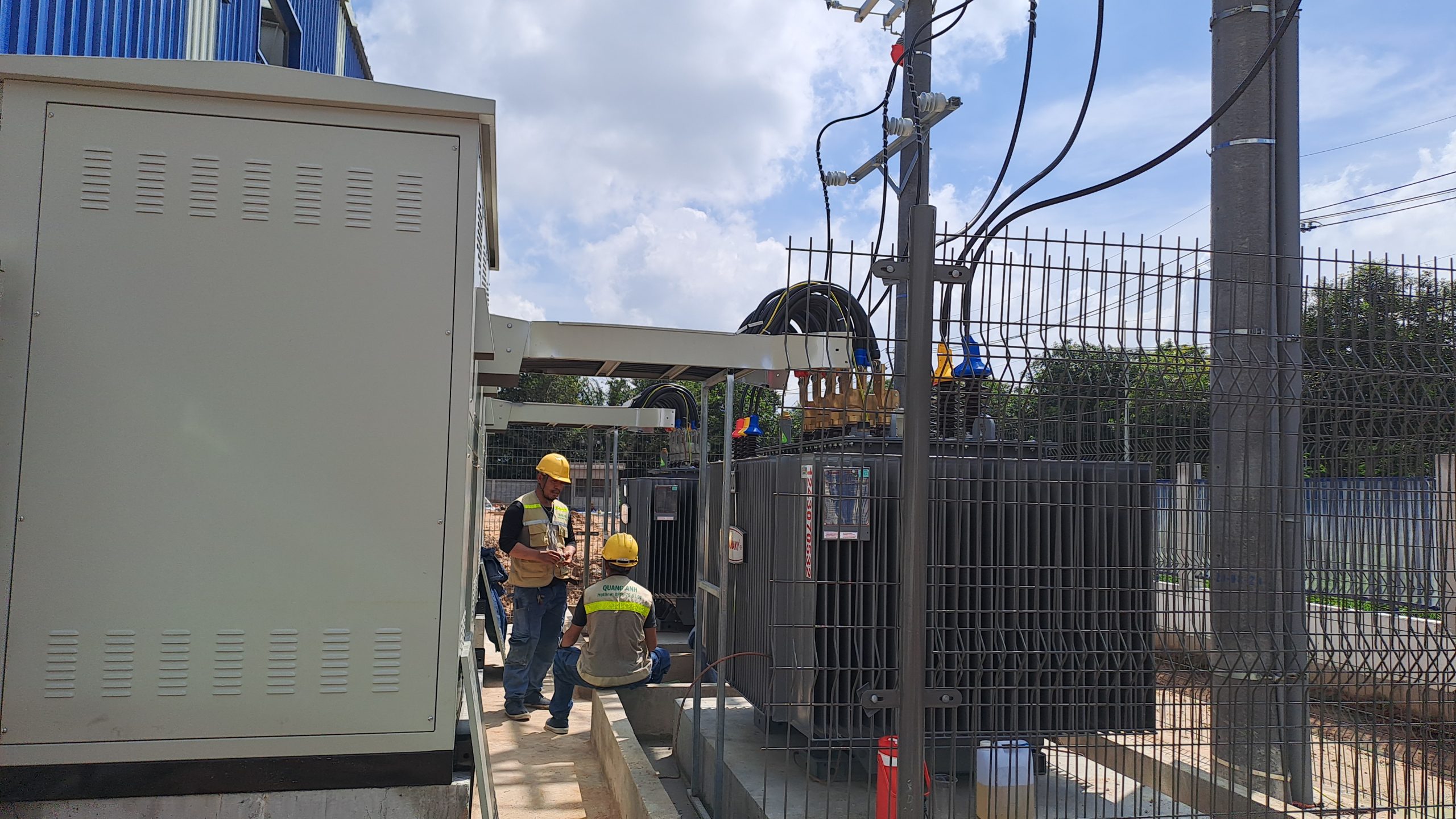

The 750kVA transformer station plays an important role in providing stable and continuous power for industrial and commercial areas. Particularly, the flexibility in choosing between types like gantry stations, steel pillar stations, and integrated kiosk stations allows adaptability to any need and installation space.

Advantages of the 750kVA Transformer Station

1. High Power: The 750kVA transformer station, with high electric power, effectively meets the energy needs of industrial parks, manufacturing plants, and high-rise buildings, ensuring stable operation for large-scale facilities.

2. High Efficiency: Industrial transformers operate with superior energy efficiency, reducing energy loss during transmission, thereby saving operational costs.

3. High Durability: Using quality materials like those from ABB and Mitsubishi, the 750kVA transformer station is resistant to impacts and harsh environmental conditions, ensuring long-lasting life.

4. Safety and Flexibility: Equipped with advanced protection devices, this transformer station flexibly operates at multiple voltage levels and can handle overloads or short-circuits, ensuring electrical system safety.

Applications of the 750kVA Transformer Station

• Industrial and Production Areas: This transformer station is widely applied in industrial parks and processing factories, thanks to its ability to provide stable power, ensuring the production lines’ performance.

• Power Distribution: Serving as an important intermediary circuit in power transmission and distribution processes, the 750kVA transformer station helps reduce energy loss efficiently.

• Cost Saving: With superior transformer efficiency and high reliability, businesses can optimize energy costs and system maintenance.

• Design and Installation: Gantry transformer stations are often installed outdoors in large industrial parks, suitable for aesthetic and safety requirements, while easily adapting to the installation space.

When considering deploying large-scale electrical systems, detailed evaluation of 750kVA transformer station pricing and related factors is crucial for ensuring long-term investment efficiency.

Important Considerations When Purchasing a Transformer Station

When selecting a transformer station, carefully consider factors such as power, voltage, product quality, as well as service and warranty time. Additionally, transportation and installation costs may differ depending on the project’s specific location and conditions.

Choosing the right transformer station is a crucial factor in ensuring operational efficiency and energy savings for your electrical system. Below are some important considerations:

1. Determine Technical Specifications

To choose the right transformer station, first pay attention to input and output voltage levels. This ensures that the transformer station voltage is compatible with the existing electrical infrastructure and meets the equipment requirements. Besides that, accurately calculating power ensures the system is not overloaded or wastes energy.

• Input and Output Voltage: Must be compatible with the current electrical system.
• Power: Choose suitable transformer capacity to avoid overload or waste.

2. Type of Transformer Station

Depending on the demand and usage environment, choosing the type of transformer station is necessary for ensuring the highest efficiency.

• Indoor and Outdoor Transformer Stations: Choose based on transformer installation environment. Indoor stations are suitable for urban, residential areas; outdoor for industrial zones.
• Single-phase and Three-phase Transformers: Single-phase for household living, three-phase suitable for industrial and business use.

3. Installation Environment

Environmental factors such as temperature and humidity affect the transformer station’s efficiency and lifespan. Consider its weather resistance and dust resistance capabilities.

4. Reputable Supplier

Choosing a reputable supplier like ABB, Schneider, or Mitsubishi ensures product quality and good after-sales service.

5. Load and Power Calculation

An important point is calculating the necessary load to avoid overloading the system. If necessary, multiple power transformer stations can be combined to ensure continuous power supply.

6. Safety and Standards

Transformer station safety must be prioritized with necessary lightning protection, grounding, and automatic electrical systems.

Considering these will help you choose the optimal transformer station for your project, saving operating costs and ensuring safety throughout usage.

The 750kVA transformer station is an optimal choice for industrial and commercial areas. Ensuring stable power supply, high adaptability, and good warranty policy, this transformer station significantly supports long-term energy strategies.
