Kiosk Transformer Station Quotation: Efficient Solution for High Voltage

Transformer stations kiosks are the optimal solution for converting voltage from high to low in areas requiring large electrical equipment, ensuring safety and aesthetics.

Design and Structure of Kiosk Transformer Stations

Kiosk transformer stations feature a sealed design with a stainless steel shell to prevent corrosion. Transformers used can be oil-type or non-oil-type from reputable brands. Low-voltage switchgear is carefully selected to ensure maximum safety.

Structure of Kiosk Transformer Stations

Kiosk transformer stations are typically designed with a sealed box structure, optimizing space savings and meeting international standards. Below is a detailed look at the main components in the structure of this station:

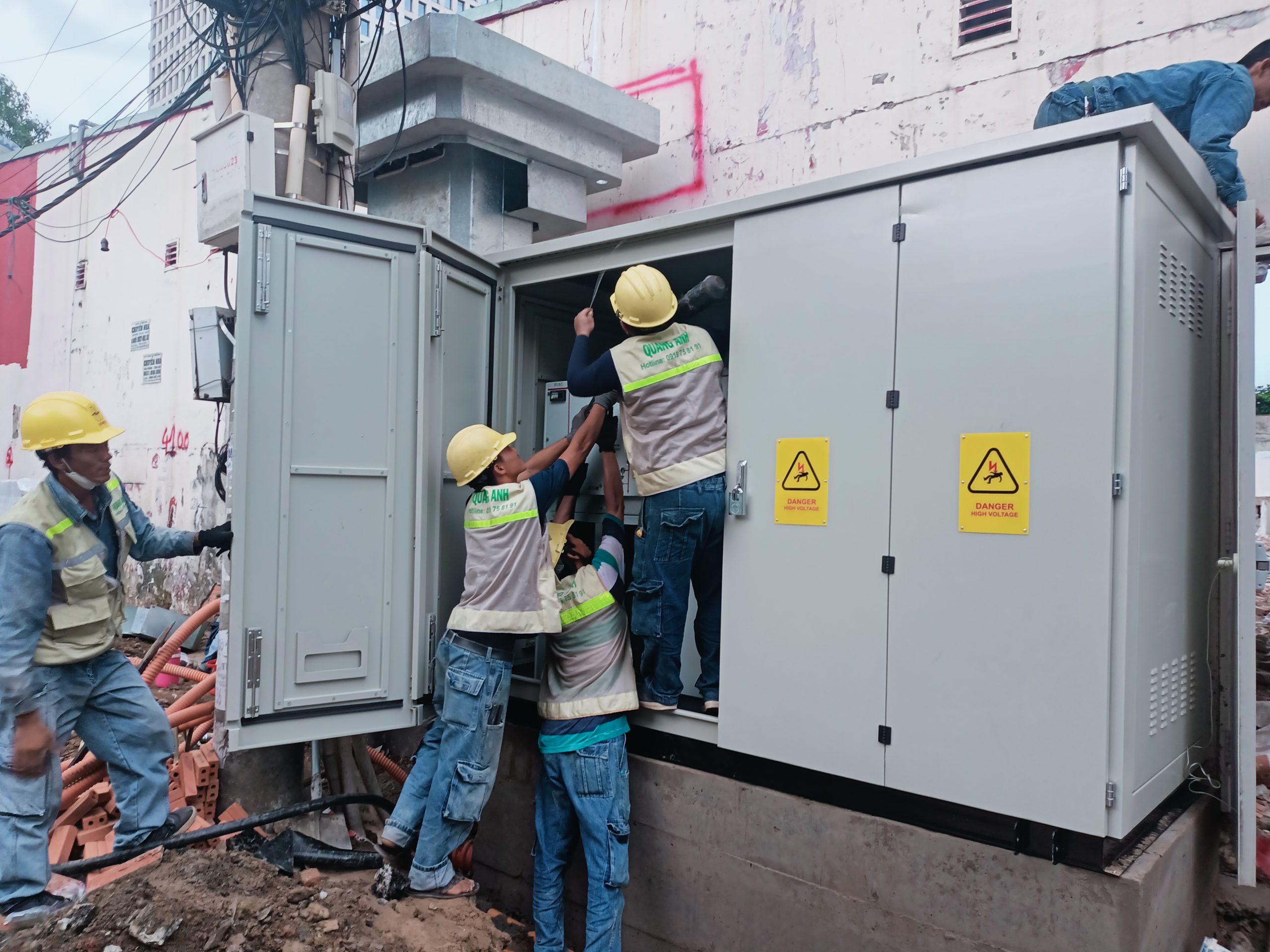

1. Shell Structure of Kiosk Stations: The station shell is made from 3mm thick steel and coated with powder on both sides, improving thermal insulation and natural ventilation systems, including:
   • Frame section: Built from 3mm thick steel, ensuring firmness.
   • Roof section: Two layers of 2mm thick steel and insulation, stable operation in temperatures above 45°C.
   • Door section: Double-layer design with durable hinges.
   • Station base: Made from I-beam 200 steel for enhanced strength.

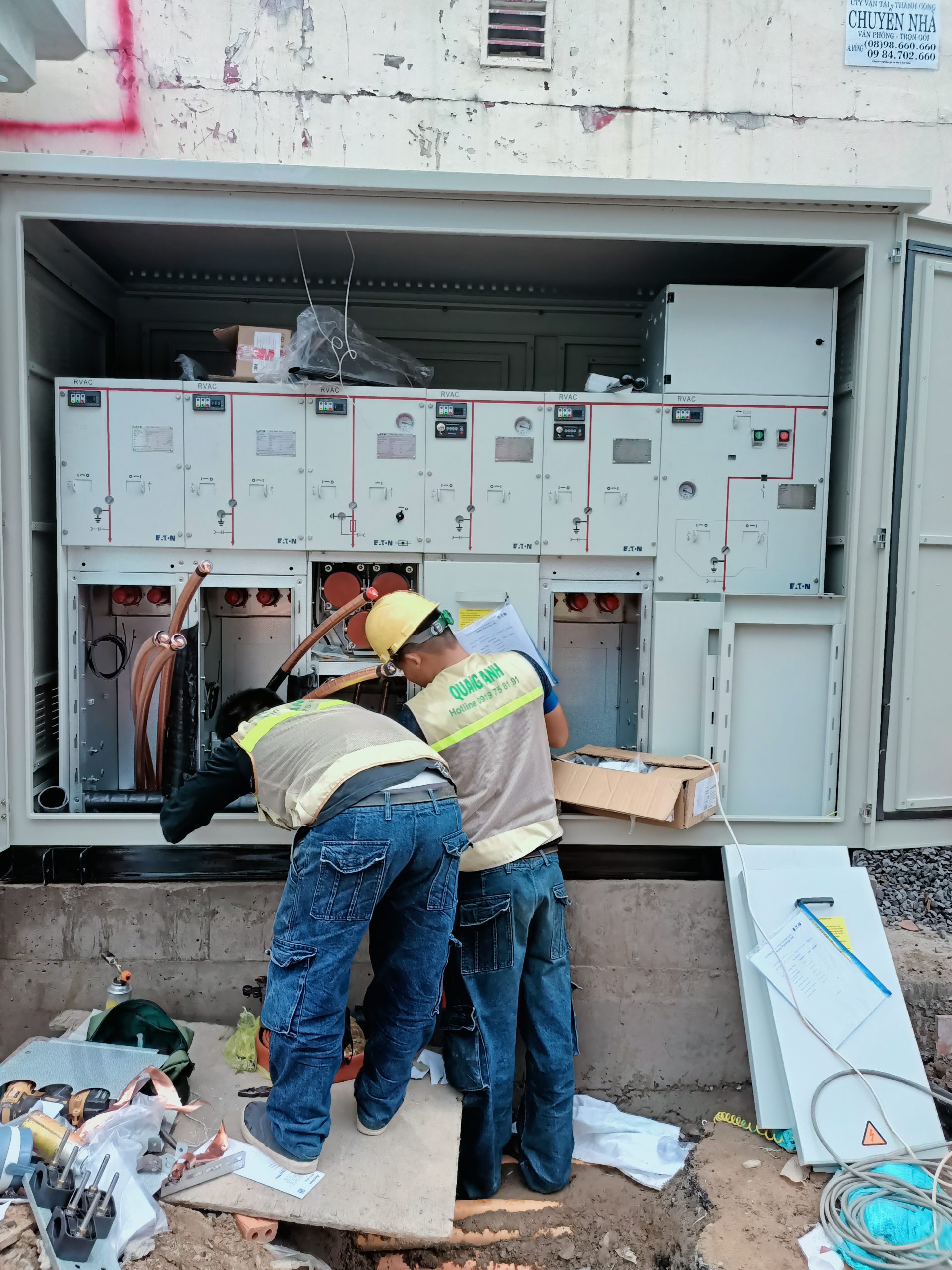

2. Medium voltage compartment: Contains RMU cabinets with a voltage range of 7.2 to 35 kV, operating frequency 50-60 Hz, and rated current from 400-630A.
3. Transformer compartment: Capacity from 160 to 2500 kVA, secondary voltage 220/440V, using Dyn/Yzn wiring style.
4. Low-voltage switchgear: Applies ACB/MCCB according to IEC 60947-2 standards.

Design and Advantages of Kiosk Transformer Stations

Kiosk transformer station quotations are often combined with the advantages of a sealed box design, ensuring comprehensive protection against environmental impacts. The notable advantages of kiosk transformer stations include:

• Space-saving: Box shape not only optimizes space but also helps create an aesthetic landscape.
• Easy to move and install: Compact design structure facilitates transportation.
• Meet international standards: Ensure safety and stable performance.
• Aesthetics and corrosion resistance: Coated with zinc and painted shell extends product life.

Applications of Kiosk Transformer Stations

Kiosk transformer stations are widely applied in various fields, meeting essential power needs:

• Industrial zones: Providing electricity for factories and production areas.
• Residential areas: Meeting energy demands for residential areas.
• High-rise buildings: Providing power for commercial and residential high-rise buildings.

The application of kiosk transformer stations helps improve the performance and safety of electrical systems, creating reliability for users.

Standards and Outstanding Features in Kiosk Transformer Stations

Standards and Outstanding Features in Kiosk Transformer Stations

Kiosk transformer stations are built according to IEC 1330 and IEC 76 standards, with voltage support from 22/0.4 kV. Additionally, they are equipped with a ventilation system and automatic temperature sensors, meeting safety and performance requirements.

International Standards and Protection Levels

Kiosk transformer stations, an essential component of modern electrical systems, are manufactured according to international standards such as IEC 62271-202 and IEC 1330. This ensures extremely high safety and performance. Particularly, the medium and low voltage compartments of the station are protected with IP54 rating, while the transformer section also achieves IP34.

Moreover, kiosk transformer stations allow operation with voltage up to 35kV and a significant capacity of 2000kVA. Another important factor to consider with kiosk transformer station quotations is the costs associated with this standard, ensuring the highest quality and safety levels.

Outstanding Functions

Module Design

The module design of the station not only creates operational flexibility but also allows easy upgrading and maintenance. This is a significant strength that helps the transformer station quickly adapt to new demands.

Safety and Aesthetics

The kiosk transformer station provides a discreet design, ensuring complete safety during operation while enhancing the aesthetics of the place of installation, a factor to consider when pricing kiosk transformer stations for critical areas.

Space and Cost Saving

Thanks to its compact design, this station helps save maximum space and minimize installation costs compared to traditional stations. This is really important when balancing economic efficiency and kiosk transformer station quotations for the project.

Durable Structure

With a shell made of powder-coated steel, the kiosk transformer station can withstand corrosion and endure harsh weather conditions.

Easy Installation and Maintenance

Kiosk stations enable quick installation and easy maintenance thanks to a reasonable structure, which can directly impact kiosk transformer station quotation decisions in projects requiring fast execution.

Heat Resistance Capability

The station shell design and ventilation system play a crucial role in protecting equipment from excessive heat and humidity, which is necessary when considering long-term endurance and efficiency in kiosk transformer station quotations.

Special Applications

Kiosk transformer stations are widely used in industrial zones, urban areas, city power systems, and even large residential complexes. Many units have chosen kiosk transformer station quotations as an investment decision due to the potential for improving power quality and ensuring system safety.

Advantages and Disadvantages of Kiosk Stations

Kiosk transformer stations have a compact, safe design, easy to install and maintain. However, limited capacity and difficult upgrades are drawbacks to consider during application.

Highlight Benefits of Kiosk Transformer Stations

Kiosk transformer stations stand out with compact design and modern technology. The main benefits of installing kiosk transformer stations include:

• Space Saving: Thanks to the compact design, kiosk stations save space, ideal for residential areas and dense urban areas. It also helps optimize land costs in planning station installation.

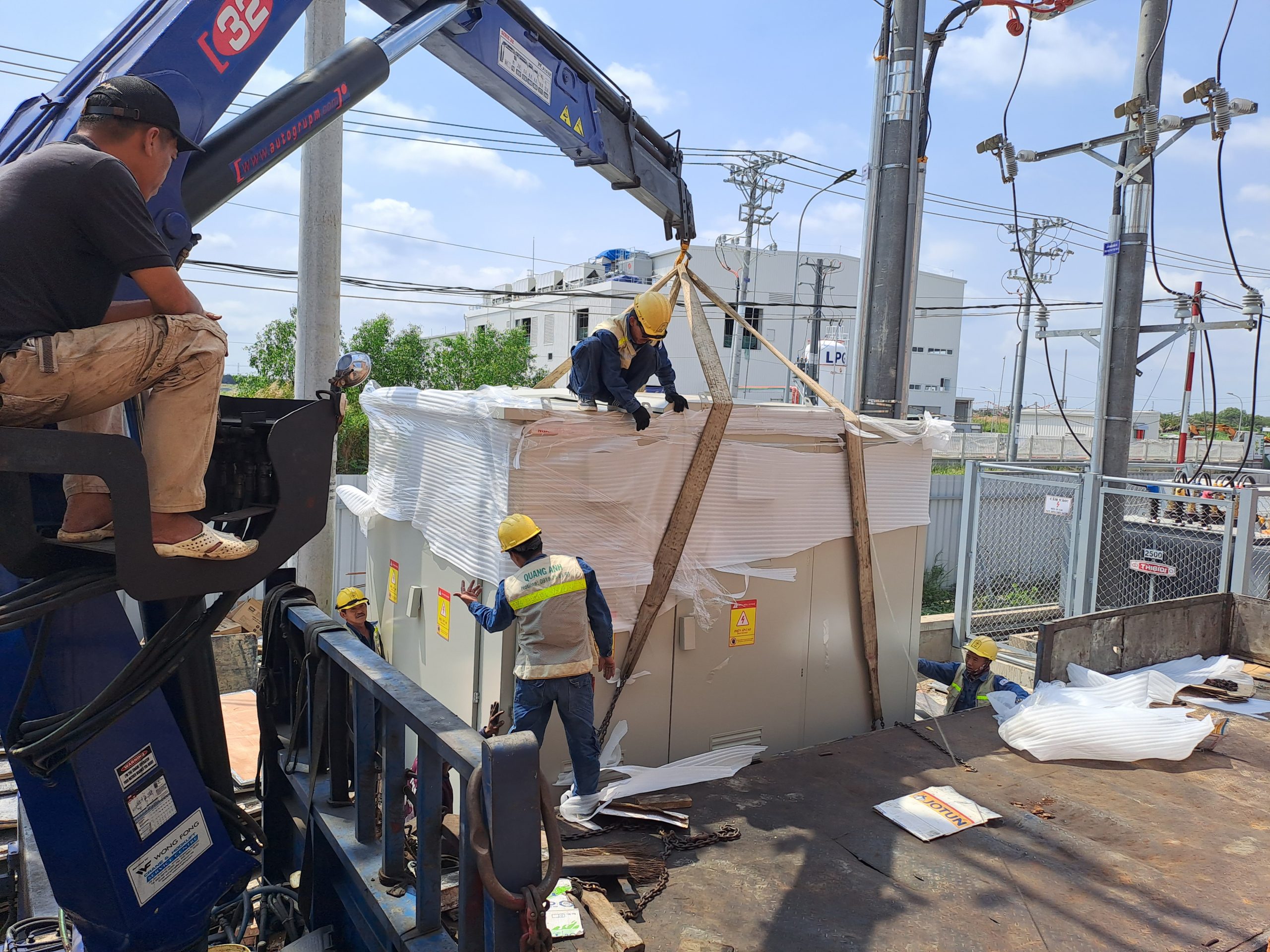

• Easy to Move and Install: With ready-made modules and light weight, transporting and installing stations become easy. This concurrently helps minimize construction costs, a crucial factor in kiosk transformer station quotations.
• High Aesthetic Value: Robust protective shell not only protects the internal equipment but also enhances the aesthetic value of the area. Kiosk transformer stations with modern design help harmonize with the surrounding environment.
• Safe and Efficient: Modern switchgear systems and a safe enclosure ensure stable power supply, protecting both operators and related electrical equipment.
• Low Construction Costs: No need to build a permanent power house, helping reduce initial investment costs.

Limitations of Kiosk Stations

Despite providing many benefits, kiosk transformer stations still have some limitations such as:

• Limited Capacity: Compared to traditional types of stations, the capacity of kiosk stations is often smaller, limiting the ability to meet areas with high electricity consumption needs.
• Upgrading Capability: As they are produced in module form, upgrading or replacing internal equipment is not always easy, which may lead to additional costs in kiosk transformer station quotations.
• Space Limitations: The sealed design of kiosk stations may encounter obstacles when maintenance is required or when installing additional new equipment.

Conclusion

In summary, kiosk transformer stations are a suitable choice for projects requiring space-saving and low voltage usage. However, careful consideration of capacity and upgrade limitations is necessary in the selection and design process.

Kiosk transformer stations are the top choice for stabilizing power sources in areas requiring high technical standards, with safe design, stable energy efficiency, and versatile application in various environments.

Contact QuangAnhcons through hotline 09 1975 8191 for detailed consultation on kiosk transformer station quotations and related services.

QuangAnhcons provides a complete package of services in the design, installation, and consulting of electrical solutions with kiosk transformer stations, meeting IEC standards, ensuring high quality and efficiency.
